- High efficiency thanks to generously sized heating surfaces
- Almost pressure-free provision of process heat up to 350 °C
- Customer-specific and tailor-made construction
- Low maintenance and low operating costs
- High efficiency thanks to generously sized heating surfaces
- Almost pressure-free provision of process heat up to 350 °C
- Customer-specific and tailor-made construction
- Low maintenance and low operating costs
- Thermal control with high precision
- Robust construction, long service life
- High safety standards thanks to the latest safety technology
- Efficiencies up to 95% when combined with INTEC air preheaters
ADVANTAGES
- Interior inspection is easily possible thanks to equipment with a pivoting door (optional).
- Installation of a cooled sight glass for flame observation
- Suitable for boiler houses with restricted height
- Easy access to the burner
ADVANTAGES
- little need for space
- Flow-efficient construction of an exhaust air preheater is possible
- Only a short chimney attachment required
- Symmetrical heating surface loading through vertical flame
- Minimum heat storage masses thanks to the cooled turning plate at the end of the combustion chamber
- The pipe coils can be easily emptied using gravity
ADVANTAGES
- Suitable for outputs from 50 kW
- little need for space
- Emission-free operation
- Suitable for laboratory systems, no chimney required
- Fast controllability
- No approval procedures for firing and storing fuel supplies
Thermal oil heater
EFFICIENT AND RELIABLE
INTEC thermal oil heaters are used to supply process heat to production systems in almost all industry sectors. .
Our customers' local conditions largely determine the design of the heat transfer oil heater.
All construction methods, whether horizontal, vertical with downward or upward lighting or electrically heated, are at the highest technical level and have been used in large numbers around the world for a long time.
- Wood & wood-based materials
- Pulp & Paper
- Palm oil & Oleochemistry
- Chemistry & Plastics
- Food & Agriculture
- Oil & Gas Petrochemicals
- Shipbuilding & Marine
- Consumption & semiconductor industry
INTEC carries out a risk analysis for all thermal oil heaters. The safety equipment, including sensors, logic and actuators, complies with DIN 4754 parts 1-3. This is equivalent to a SIL-2-version.
Thermal oil heater
ETE - Electrically heated
INTEC's electrically heated thermal oil heaters (ETE) are a sustainable alternative for small and medium-sized thermal oil systems.
All ETE thermal oil heaters operate completely emission-free, require neither a permitting process for firing nor tanks for fuel storage, and significantly reduce the demands on the supply infrastructure.
Compared to directly fired systems, electrically heated thermal oil heaters have a significantly reduced CO2 footprint, depending on the source of the electricity.
The performance range of our ETE systems is between 0.02 - 5 MW.
The heat transfer oil in electrically heated systems is heated using bundles of heating rods, with the heat transfer oil being passed through the bundles in multiple cross-flow.
This controlled oil flow in combination with a low surface load on the heating elements guarantees a long service life of the system.
Both the heating elements and the entire system can be designed for potentially explosive installation locations.
Industry sectors
Wood | Chipboard production
Thermal oil
Fuels
Technical specifications
Volume flow: 620 m³ / h
Industry sectors
Plastics industry
Thermal oil
Fuels
Technical specifications
Volumenstrom : 220 m³ / h
Three horizontally fired thermal oil boilers with an air preheater above.
Industry sectors
Wood
Heat transfer medium
energy carrier
Technical specifications
Industry sectors
Wood processing
Heat transfer medium
Fuels
Technical specifications
Volume flow: 800 m³ / h

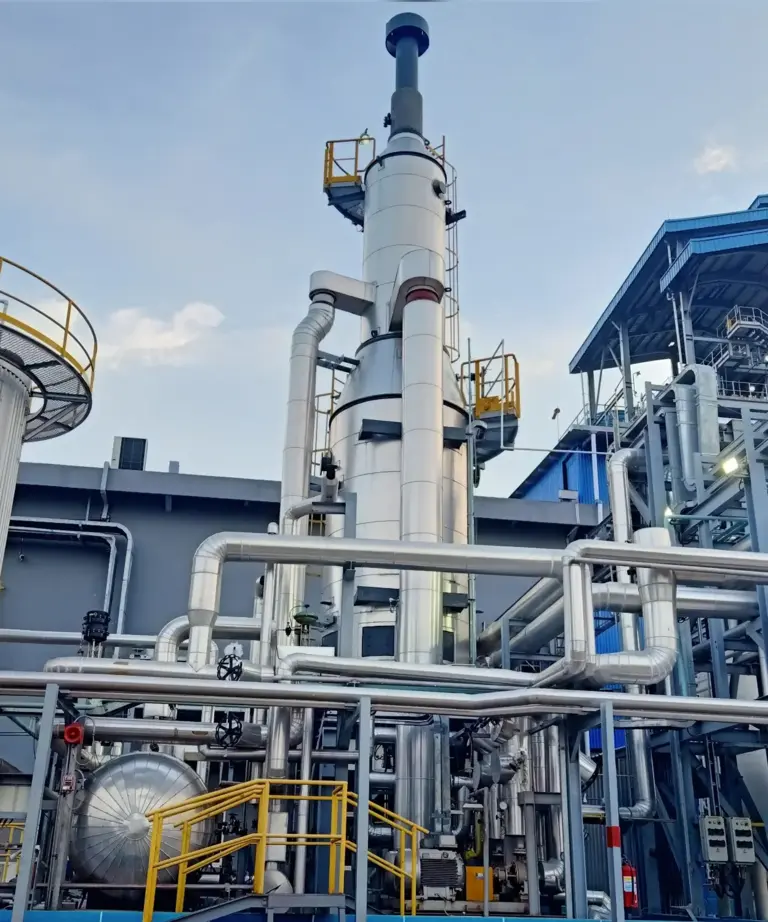

INTEC vertically upward-fired thermal oil heater (dual-fuel burner) with cooled reversible plate, air preheater and chimney.
Industry sectors
Oleochemistry
Heat transfer medium
Fuels
Technical specifications
Industry sectors
Wood industry | Chipboard production
Heat transfer medium
Fuels
Technical specifications
Industry sectors
Plastics
Heat transfer medium
Fuels
Technical specifications
Volume flow: 820 m³ / h
Location: Thailand
Industry sectors
Chemistry
Heat transfer medium
Fuels
Technical specifications
Volume flow: 460 m³ / h
Location: Türkey
Industry sectors
Plastics
Heat transfer medium
Fuels
Technical specifications
Volume flow: 180 m³ / h
Industry sectors
Chipboard production
Heat transfer medium
Fuels
Technical specifications
Thermal oil heater fired downwards
Volume flow: 170 m³ / h
Industry sectors
Petrochemicals
Heat transfer medium
Fuels
Technical specifications
Volume flow: 670 m³ / h
The efficiency of 92 % is achieved through air preheating and natural gas as fuel.
Industry sectors
Plastics
Heat transfer medium
Fuels
Technical specifications
Volume flow: 670 m³ / h
Down fired thermal oil heater with air preheater. Fired with natural gas, this boiler achieves an efficiency of 92 %.
Industry sectors
Plastics
Heat transfer medium
Fuels
Technical specifications
Volume flow: 184 m³ / h
Down-fired thermal oil heater with air preheater installed in China
Industry sectors
- Chemistry | Plastics
- Automotive | Mechanical engineering
- Steel industry
- Wood
- Oleochemistry
Thermal oil
Technical specifications
Industry sectors
Biochemistry | Oleochemistry
Heat transfer medium
Energy source | Heating source
Technical specifications
Volume flow: 100 m³ / h
Industry sectors
Automobiles | Assembly
Heat transfer medium
Energy source | Heating source
Technical specifications
Volume flow: [80] m³ / h
Automotive prepressed fibre mats
